Outdoor Video Advertising Screen
High-Brightness LED Billboards for Outdoor Advertising
An Outdoor Video Advertising Screen is a heavy-duty, high-brightness commercial digital billboard designed to broadcast crisp HD video advertisements around the clock. Ideal for metropolitan plazas, commercial building facades, transit hubs, and sports stadiums, these robust Outdoor Video Advertising Screens function as high-impact marketing tools that capture attention in busy outdoor environments.

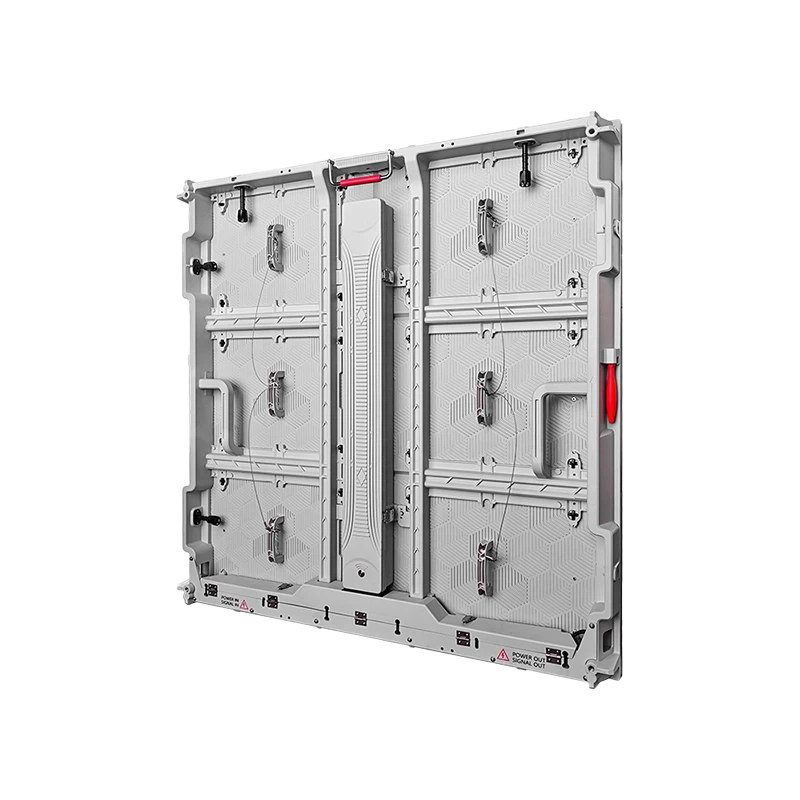

Engineered with precision die-cast aluminum modules and a one-piece chassis, the system offers excellent weather resistance, energy efficiency through common cathode technology, and reliable performance. Optional structural steel cabinets are available for projects requiring maximum wind resistance.
Screen Specification
Display Scale: Modular designs from 20 sqm to 500+ sqm
- Pixel Pitch Options: P3.07, P4.0, P5.0, P6.67, P8.0, P10.0 (chosen according to typical viewing distance)
- Brightness & Refresh Rate: 5,500–8,500 nits with automatic dimming / 3,840 Hz or higher
- Contrast Ratio: 8,000:1 to 10,000:1 using matte black LED masks that improve contrast and visibility in bright daylight
- Power Consumption: 180–240W per sqm in energy-saving mode
- Protection Rating: IP65 or IP66, fully weatherproof on front and rear
Key Performance Features
Common cathode circuitry supplies precise voltage to each R/G/B LED chip, reducing power consumption and heat generation by 30–40%. This results in substantial annual energy savings (verified through internal testing at full brightness levels) for common cathode outdoor LED displays.
The IP66-rated protection incorporates multi-layer sealing, including edge gaskets, waterproof power compartments, and aviation-grade connectors. This ensures reliable operation of waterproof outdoor LED displays from -35°C to +50°C, even in heavy rain or dusty conditions.
Screen Specifications
Performance Parameters
| Parameter | XAD4S | XAD4.4S | XAD5S | XAD5.7S | XAD6.6S | XAD8S | XAD10S |
|---|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 4 | 4.44 | 5 | 5.71 | 6.67 | 8 | 10 |
| LED Type | SMD 3in1 (1921) | SMD 3in1 (1921) | SMD 3in1 (2727) | SMD 3in1 (2727) | SMD 3in1 (2727) | SMD 3in1 (2727) | SMD 3in1 (2727) |
| Cabinet Size (mm) | 960×960×75 / 91 (Die-cast) | 960×960×75 / 91 (Die-cast) | 960×960×75 / 91 (Die-cast) | 960×960×75 / 91 (Die-cast) | 960×960×75 / 91 (Die-cast) | 960×960×75 / 91 (Die-cast) | 960×960×75 / 91 (Die-cast) |
| Cabinet Resolution | 240×240 | 216×216 | 192×192 | 168×168 | 144×144 | 120×120 | 96×96 |
| Brightness (nits) | ≥5000 | ≥5000 | ≥5500 | ≥5500 | ≥5500 | ≥5500 | ≥6500 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Contrast Ratio | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Max Power Consumption (W/㎡) | ≤750 | ≤750 | ≤750 | ≤750 | ≤750 | ≤750 | ≤750 |
| Avg Power Consumption (W/㎡) | ≤280 | ≤280 | ≤280 | ≤280 | ≤280 | ≤280 | ≤280 |
| Viewing Angle (H/V) | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
| Operating Temperature | -20°C ~ 65°C | -20°C ~ 65°C | -20°C ~ 65°C | -20°C ~ 65°C | -20°C ~ 65°C | -20°C ~ 65°C | -20°C ~ 65°C |
| Protection Rating | IP65 / IP66 | IP65 / IP66 | IP65 / IP66 | IP65 / IP66 | IP65 / IP66 | IP65 / IP66 | IP65 / IP66 |
Customizable Options
Pixel Pitch: P3 to P10, tailored to specific viewing distances
Cabinet Size: Standard 960×960mm or 1024×1024mm, with fully custom dimensions available
Cabinet Material: Precision die-cast aluminum (lightweight) or structural steel (high wind load)
Brightness: Up to 8,500+ nits with ambient light sensors
Service Access: Front service outdoor LED cabinet designs for fast maintenance
Deployment Scenarios
High brightness outdoor video advertising screens for commercial buildings transform plain facades into premium digital advertising spaces that command high rental rates from global brands. P6–P8 pixel pitches are typically recommended for these installations, providing optimal clarity at 8–20 meter viewing distances. Many clients also choose high brightness outdoor advertising screen solutions for maximum daytime visibility.
Metropolitan plazas benefit from dynamic video content that boosts foot traffic and engagement. Sports arenas use these displays for live event streaming and off-hour advertising. Transit hubs and airports combine real-time passenger information with targeted promotions. Tourist sites and highways gain eye-catching digital landmarks visible from afar.
Manufacturer Capabilities
Our factory & quipment
We maintain strict quality control with in-house CNC tooling for module alignment accuracy within 0.1mm. Every Outdoor Video Advertising Screen undergoes comprehensive 72-hour aging tests (24h static, 48h video playback, and vibration testing at 5G acceleration) following industry protocols.
All screens are CE, RoHS, FCC, and UL certified, built with Tier-1 components such as MeanWell power supplies and Macroblock drivers. Full turnkey support includes technical drawings, system diagrams, and installation training.
Installation & Maintenance Support
The one-piece die-cast aluminum design avoids thermal expansion issues between different materials. Front service outdoor LED cabinet options allow technicians to replace modules quickly from the front using a simple tool, reducing the need for expensive scaffolding on tall installations. Integrated sensors and cooling fans activate automatically to maintain safe operating temperatures.
Frequently Asked Questions
Q1: Can content be updated remotely on screens in different cities? A: Yes. The cloud-based control platform makes it easy to manage playlists and monitor your Outdoor Video Advertising Screens from anywhere.
Q2: How energy-efficient is the common cathode design? A: It typically cuts electricity use by up to 35% compared with traditional setups. This makes common cathode outdoor LED display solutions particularly cost-effective for large-scale 24/7 installations.
Q3: What makes these screens perform so well under direct sunlight? A: With 8,500 nits peak brightness and strong contrast from the matte black masks, these IP65 outdoor LED screens deliver clear, saturated colors even under intense midday sun.
Q4: What's the easiest way to maintain screens mounted high up? A: Front service outdoor LED cabinet designs allow module changes in seconds without rear access, making servicing much simpler and safer for elevated installations.
Q5: How well do the displays handle extreme weather? A: Very well. Smart sensors monitor internal conditions and activate cooling as needed, while the full IP66 sealing protects against dust and powerful water jets.
Q6: What warranty and delivery options do you offer? A: Standard warranty covers 3–5 years on major components. Delivery usually takes 15–25 days for standard models and 30–45 days for custom configurations.
Q7: How do I select the best pixel pitch? A: It depends on viewing distance. P4–P5 works well for closer range (5–10m), P6–P8 suits most commercial building applications (10–20m), and P10 is ideal for longer distances such as highways or large public squares.In summary, investing in a reliable Outdoor Video Advertising Screen provides a long-term, high-visibility advertising solution that combines durability, energy efficiency, and outstanding image quality for demanding outdoor environments.
